bottle blowing machine/bottle washing filling capping machine/mineral water plant

FOB Reference Price:Get Latest Price
$15,000.00 - $35,000.00 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Cartons
Packaging Material:
Plastic, Wood, Other
Type:
Filling Machine
Condition:
New
Application:
Beverage
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V
Power:
3.13KW
Place of Origin:
Jiangsu, China
Brand Name:
WANJIN
Model Number:
CGF32-32-10
Dimension(L*W*H):
4050*2300*2100
Weight:
5000kg
Certification:
CE SGS
Processing Types:
Pet bottle
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
15 Unit/Units per Month
Packaging & Delivery
Packaging Details
WOOD CASE
Port
Shanghai
Lead Time :
30 DAYS
Product Description

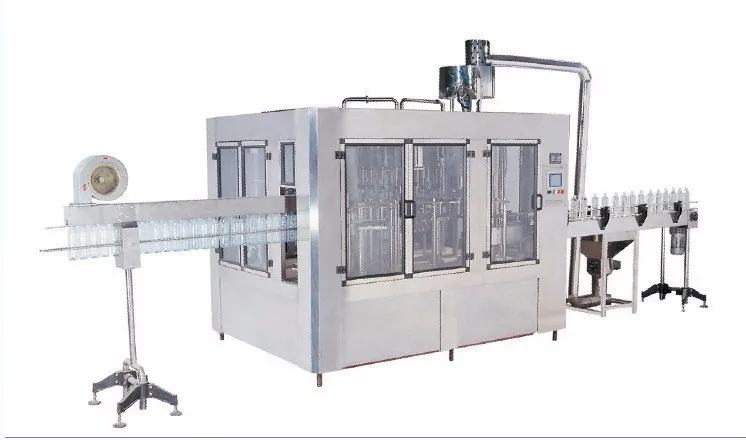

CGF series Blowing Filling Capping combine three in one machine

Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Filling Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the  mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and beverage bottle etc. And the most important thing is that our company's shelf life than other companies to long, the general company shelf life of one year, and our company's shelf life of two to three years, we make every effort to the best after-sales service, improve the company system.

            Technical  Specifications

Model

CGF-14-12-5

CGF18-18-6

CGF24-24-8

CGF32-32-10

CGF40-40-12

CGF50-50-12

CGF60-60-15

CGF72-72-16

CGF80-80-18
Production Capacity(500ml/bh)


4000


7000


10000


14000


18000


24000


28000


32000


36000
Number of rinsing head

     14

     18

     24

    32

     40

    50

    60

     72

     80
Number of filling head

    12

     18

    24

     32

     40

     50

     60

      72

    80
Number of capping head

     5

      6

       8

      8

    12

     12

     15

       16

    18
Suitable Cap Shap(mm)

Round or square
Bottle diameter(mm)

φ50-φ90


Bottle height(mm)

150-310
Compressed air pressure(MPa)

0.3-0.7
Flushing medium(MPa)

0.25
Total Power(KW)

   3.13

   3.84

     4.1

    5.5

    7.5

   10.8

   11

   11

   15
Dimension(L*W*H)(mm)
2250*1640*2100
2430*1800*2100
3050*2060*2100
4050*2300*2100
4300*3300*2500
4720*3550*2750
4800*3600*2750
4860*3650*2750
6500*5500*2750
Total Weight(Kg)

  2500

   3000

   4000

   5000

  7500

  8500

  9000

  9500

 11000

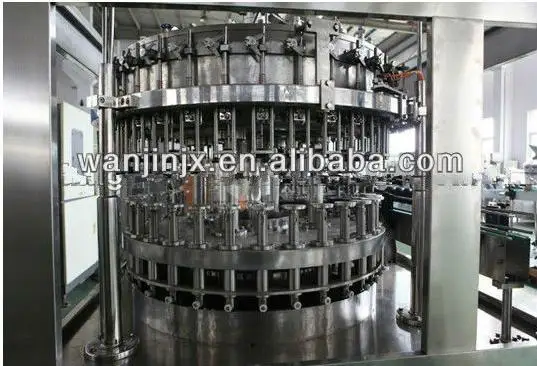

Washing  Machine

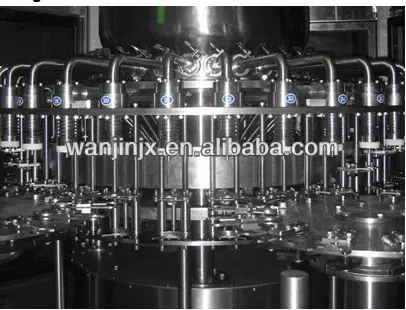

Filling Machine

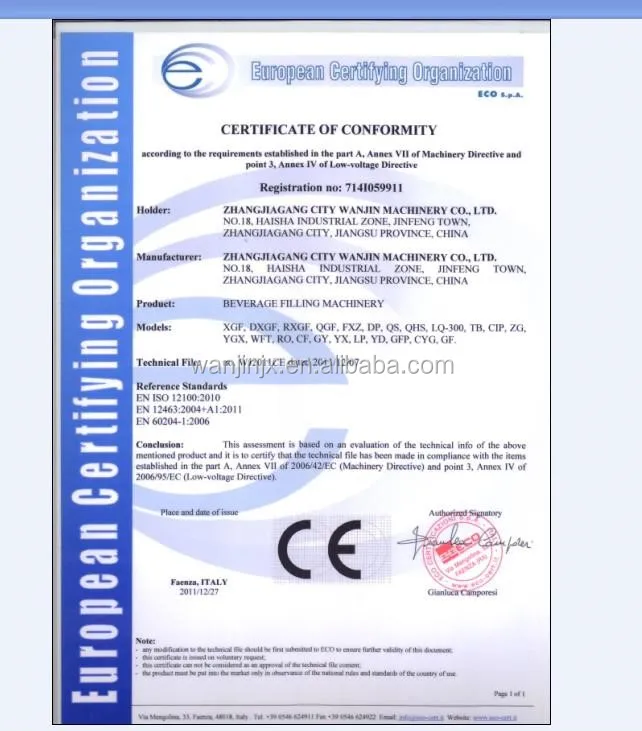

Certifications

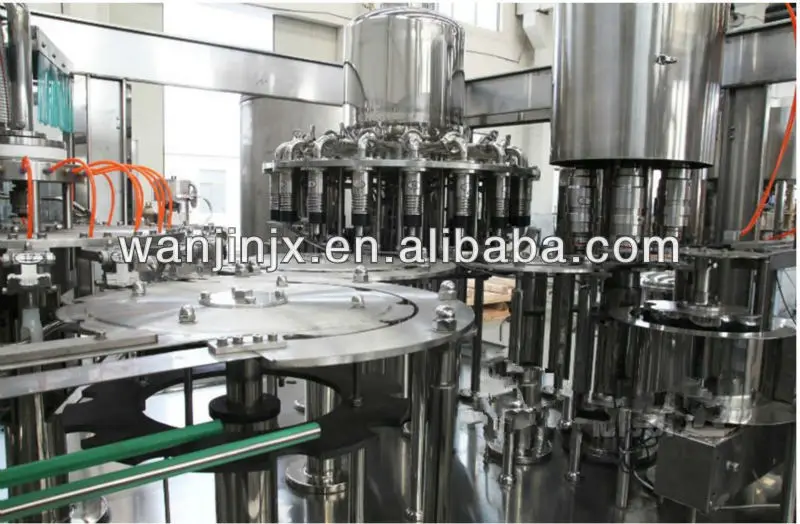

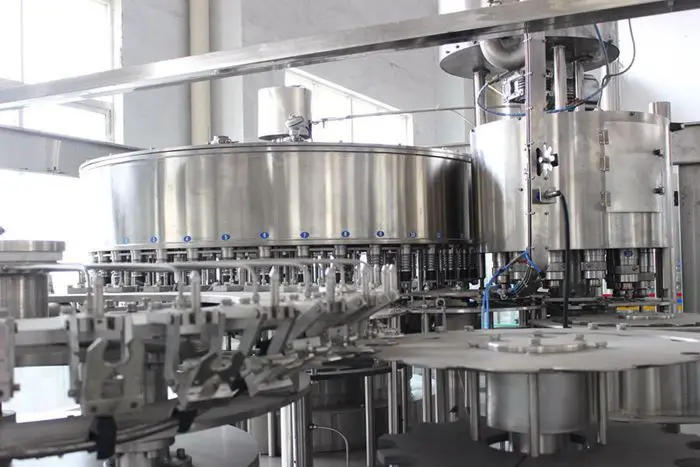

Detailed Images

Machine Parts

Name: Washing  machine

Brand: WANJIN

Original: China


Main Features

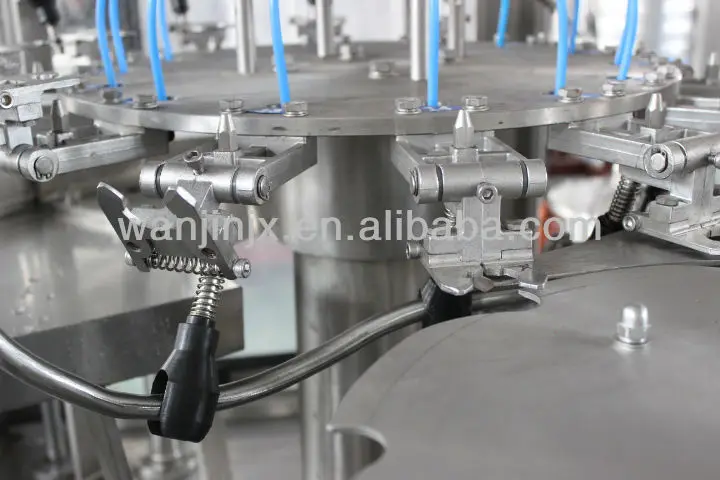

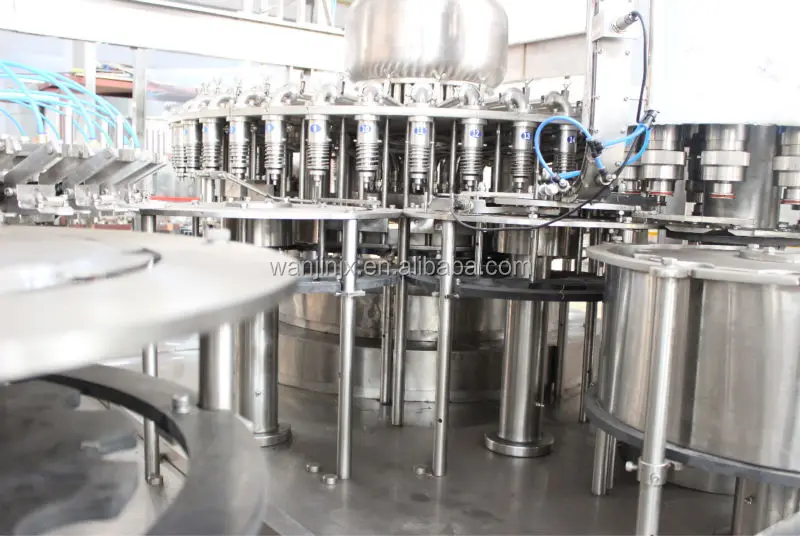

Name: Filling machine
Brand: WANJIN
Original: China

Product small size, high efficiency, can maximize the use of water resources, reduce waste, cost savings

Machine Parts

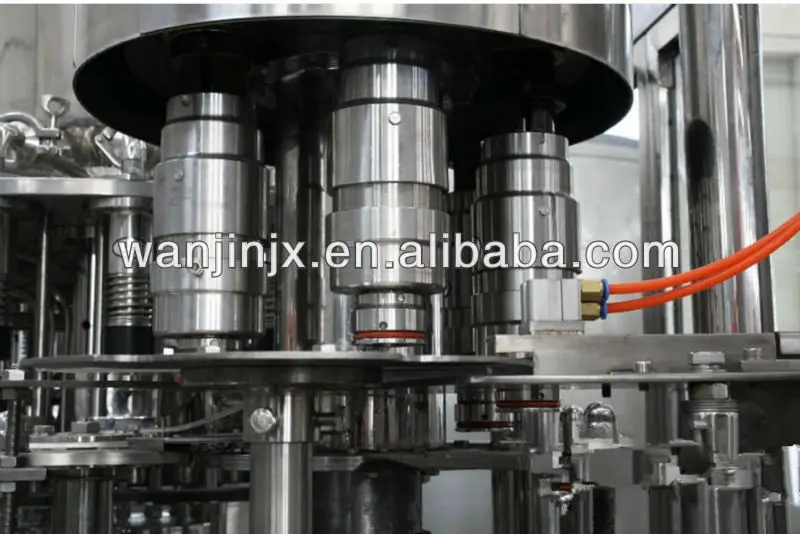

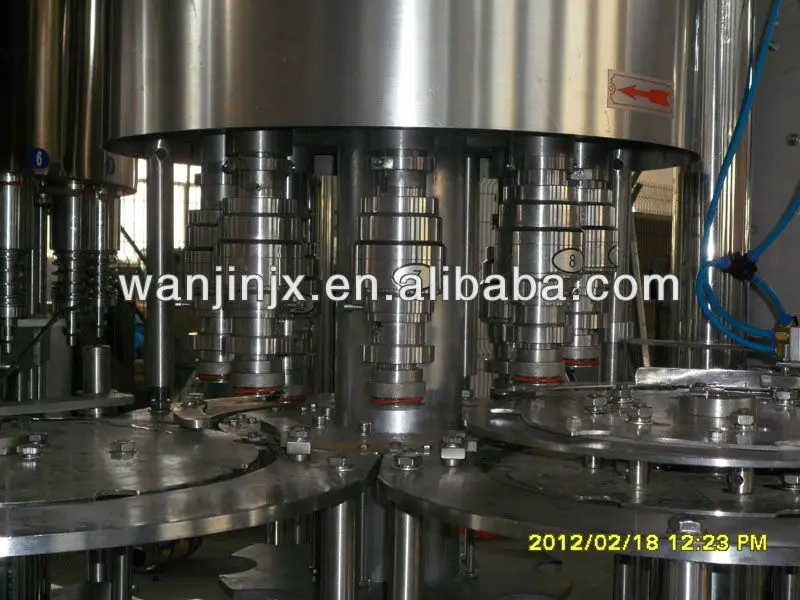

Name: Capping machine
Brand: WANJIN
Original: China

Main Features

Name: Capping machine
Brand: WANJIN
Original: China
Using the most advanced mechanical technology, beautiful appearance, high efficiency, bottle closure success rate of 100%

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size(mm)
2250 (L) * 1640 (W) * 2100 (D)
Weight
2.5 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
